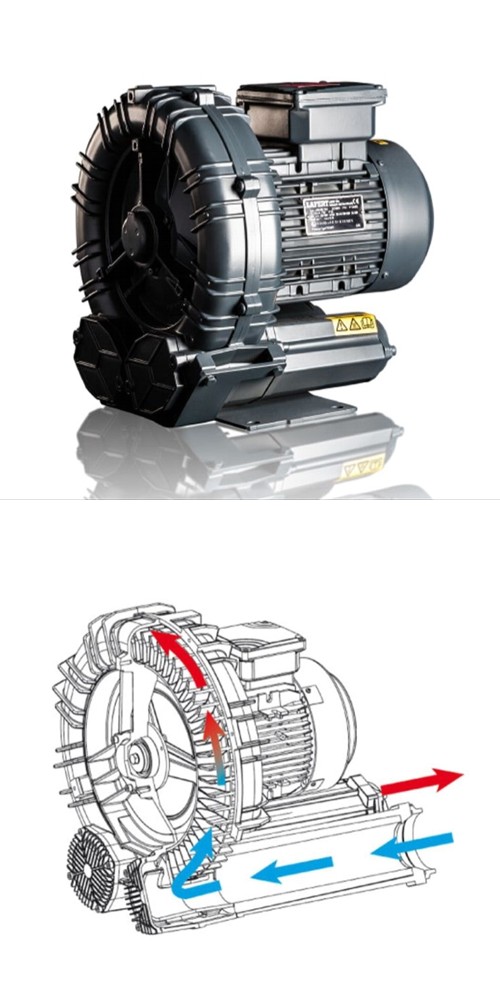

Side channel compressor for pressure and vacuum

RIC M 30 S - RIC M 120 S

Single vane impeller - single stage

Max. Capacity: 1022 m³/h (50 Hz)

1234 m³/h (60 Hz)

ambient temperature: -15 to +40°C

Directly flanged, two-pole three-phase asynchronous motor in IE2/IE3 version. Insulation class F - tropically protected and protection class IP55 with bi-metal thermal protection contact.

Printing applications:

Maximum flow rate 1234 m³/h
Maximum pressure 450 mbar

Vacuum applications:

Maximum flow rate 1234 m³/h
Maximum pressure 350 mbar

In this overview you can see our "standard" blowers for pressure and vacuum. Of course you can also order vertical designs, frequency controlled systems, ATEX versions, special coatings, various accessories etc..
Call us.

Our products are also available with impregnation, sealing, anodizing and special protection for aggressive gases.

Manuals are available in EN, FR, ES, IT, BP, other languages on request! Step-files, CAD-files will be gladly sent to you.
