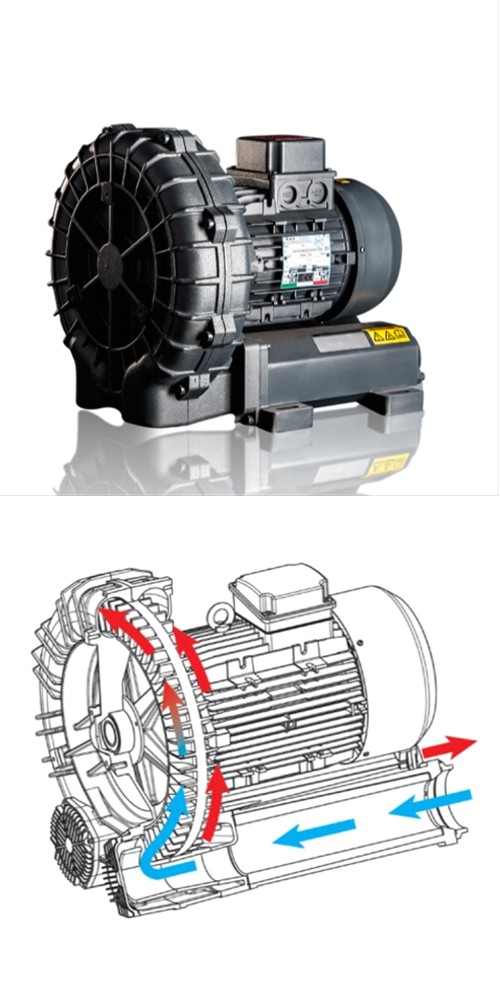

Side channel compressor for pressure and vacuum


RIC M 20 RD - RIC M 120 D

Single vane wheel - two-stage

Max. Capacity: 472 m³/h (50 Hz)

570 m³/h (60 Hz)

ambient temperature: -15 to +40°C

Directly flanged, two-pole three-phase asynchronous motor in IE3 version. Insulation class F - tropically protected and protection class IP55 with bimetal thermal protection contact

Printing applications:

Maximum flow rate 570 m³/h
Maximum pressure 650 mbar

Vacuum applications:

Maximum flow 570 m³/h
Maximum pressure 425 mbar

Aluminium construction, on request with internal coating against corrosive media. Our products are also available with impregnation, sealing, anodising and special protection devices for aggressive gases.

Manuals are available in EN, FR, ES, IT, BP, other languages on request! Step-files, CAD-files will be gladly sent to you.

Table pressure operation RIC M20 RD–RIC M 120D


Table vacuum operation RIC M20 RD–RIC M 120D


Operating Instructions RIC M 20 RD – RIC M 120 D


Data sheets RIC M 20 RD – RIC M 120 D
