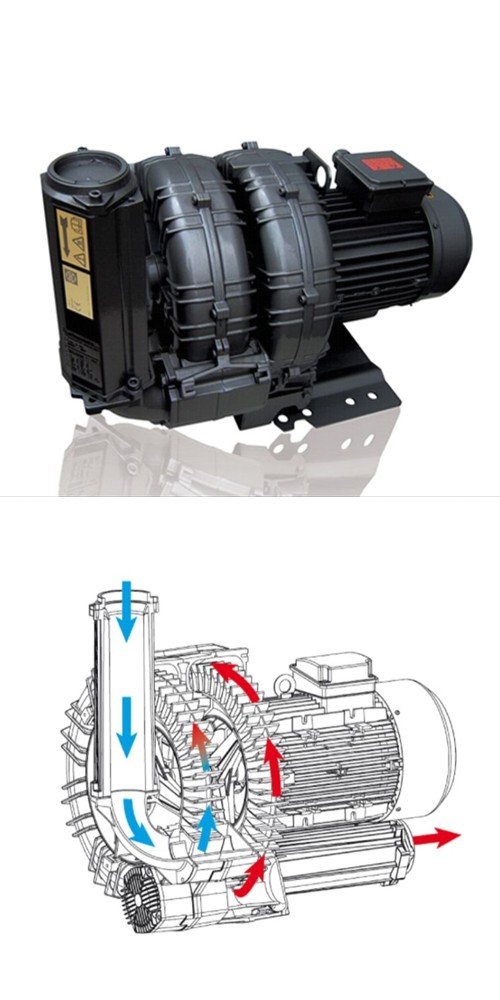

Side channel compressor for pressure and vacuum


RIC T 40 D - RIC T 120 D

Double blade impeller - single stage

Max. Capacity: 1007 m³/h (50 Hz)

1216 m³/h (60 Hz)

ambient temperature: -15 to +40°C

Directly flanged, two-pole three-phase asynchronous motor in IE3 version. Insulation class F - tropically protected and protection class IP55 with bimetal thermal protection contact

Printing applications:

Maximum flow rate 1216 m³/h
Maximum pressure 300 mbar

Vacuum applications:

Maximum flow rate 1216 m³/h
Maximum pressure 300 mbar

Aluminium construction, on request with internal coating against corrosive media. Our products are also available with impregnation, sealing, anodising and special protection devices for aggressive gases.

Manuals are available in EN, FR, ES, IT, BP, other languages on request! Step-files, CAD-files will be gladly sent to you.

Table pressure operation RIC T 40 D – RIC T 120 D


Table vacuum operation RIC T 40 D – RIC T 120 D


Operating Instructions RIC T 40 D – RIC T 120 D


Data sheets RIC T 40 D – RIC T 120 D
